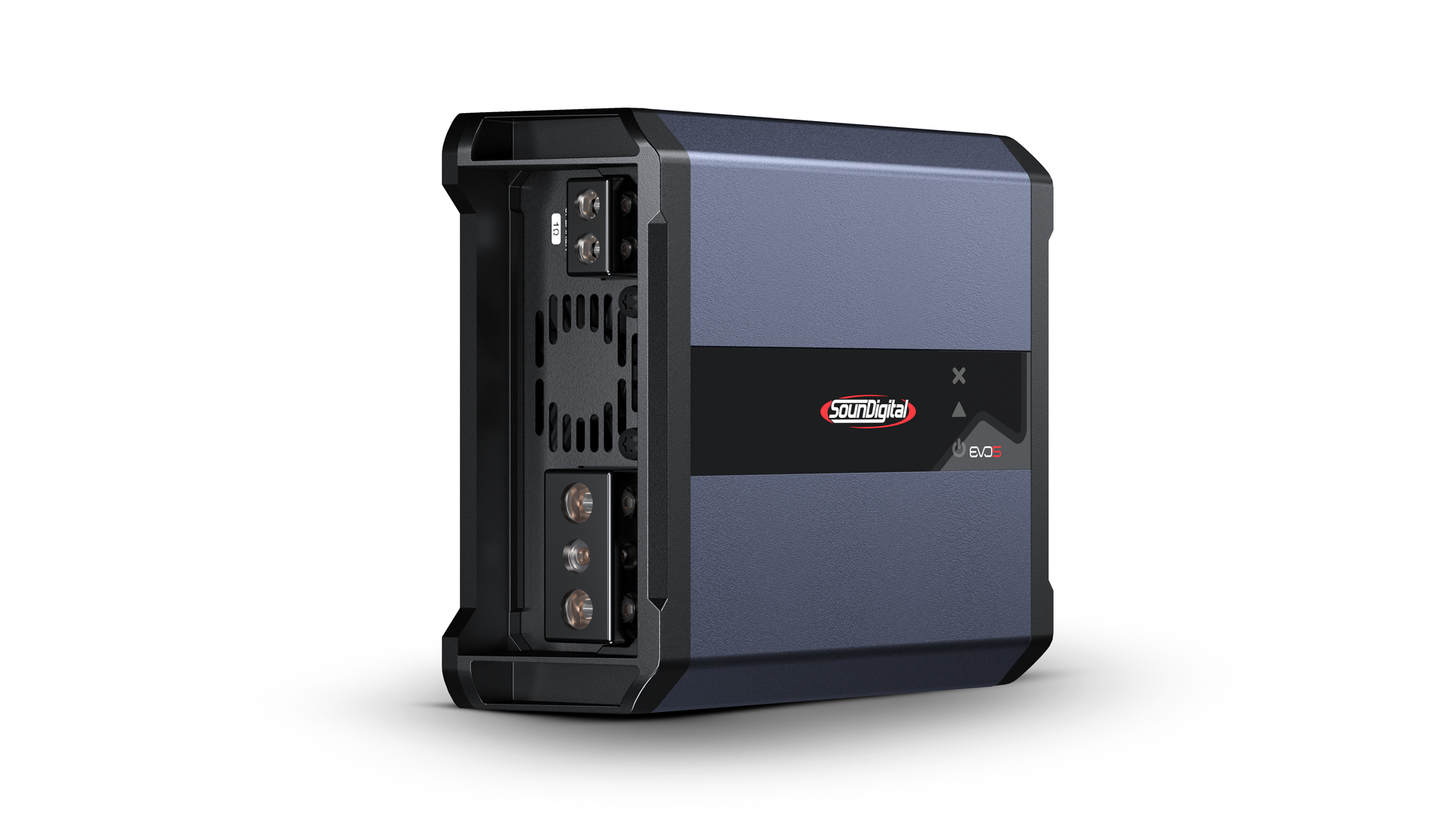

SounDigital SD1200.1 EVO 5 - 2 Ohm

Power @ 1Ω: N/A
Power @ 2Ω: 1 X 1200 WRMS
Power @ 4Ω: 1 X 792 WRMS

Frequency Response (-3dB):

5Hz ~ 25kHz

Subsonic Filter:

5Hz ~ 80Hz

Low Pass Filter:

50Hz ~ 1kHz

Bass Boost:

0dB ~ 12dB @ 50Hz

Operating Voltage:

9V ~ 16V

Signal-Noise Ratio:

95dB

Input Sensitivity:

0.2V ~ 2V
Current Draw (Music):

1Ω: 54A
2Ω: 52A

Current Draw (Max):

1Ω: 108A
2Ω: 105A

Total Efficiency:

1Ω: 88%
2Ω: 91%

Damping Factor:

2000

Power Cable:

16mm² (5AWG)
Audio Output Cable:

1Ω: 2 x 4 mm² (6 AWG)
2Ω: 2 x 2,5 mm² (13 AWG)

Recommended Fuse (Music):

70A

Recommended Battery:

70Ah

Width:

13.6 cm / 5.4 in

Length:

18 cm / 7.1 in

Height:

5.48 cm / 2.2 in

Weight:

1,12 Kg.
