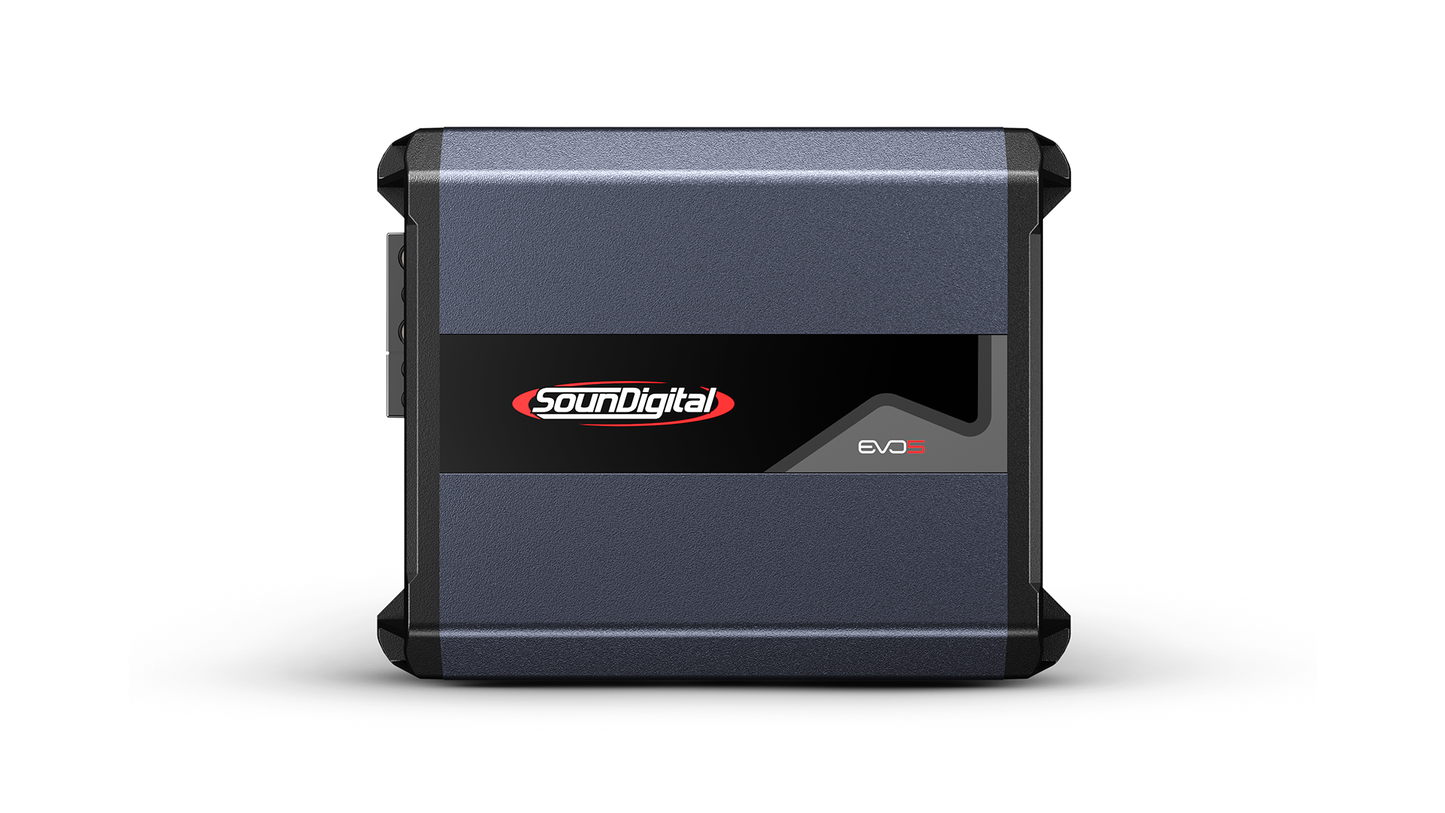

SounDigital 800.1 EVO 5 - 4 Ohm

Power @ 2Ω: N/A
Power @ 4Ω: 800W
Power @ 8Ω: 528W

Frequency Response:

10Hz ~ 20kHz

Subsonic Filter (HP 12dB/8º):

10Hz ~ 80Hz

Low Pass Filter (LP 12dB/8º):

50Hz ~ 20kHz

Operating Voltage:

8V ~ 16V

SNR:

2Ω: 96dB
4Ω: 97dB

Input Sensitivity (RCA): 0.2V ~ 4V

Input Sensitivity (High Level input): 1.5V ~ 15V

Current Draw (Music): 4Ω: 38A

Current Draw With Resistive Load (1kHz @ 12.6V): 4Ω: 77A

Total Efficiency: 4Ω: 78%

Damping Factor (@100Hz Rated Impedance): 200

Power Cable: 10mm² (7AWG)

Audio Output Cable: 2 x 2mm² (12 AWG)

Recommended Fuse (Music): 40A

Recommended Battery (Music): 60Ah

Width: 4.4 in / 11,3 cm

Length: 5.8 in / 14,8 cm

Height: 2 in / 5,1 cm

Weight: 1.54 lb / 0,7 Kg
